# D-Link DWM-311-G 5G M2M

The D-Link DWM-311-G is a 5G M2M modem designed for industrial and IoT applications. It provides high-speed 5G and LTE connectivity, enabling reliable access to both public and private networks. The device supports a wide range of frequency bands, ensuring compatibility with various network infrastructures.

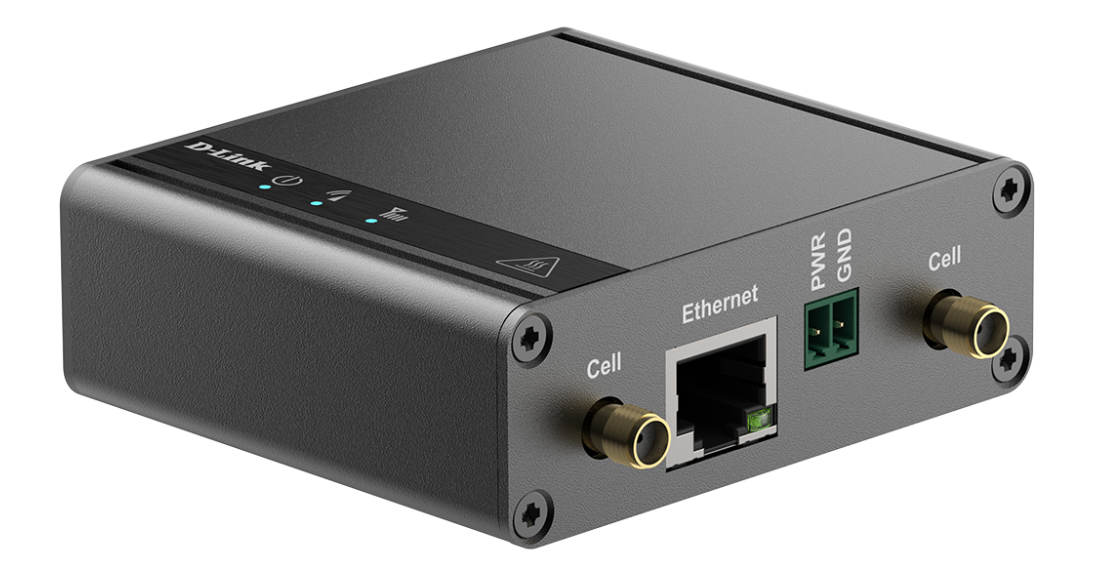

<figure><img src="https://3922449203-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-M0mPxGpottOEfcucXOR%2Fuploads%2FmNenz2MsFUgm2uILuxy4%2FDWM-311-G.png?alt=media&#x26;token=d698448b-c482-47cf-9bc2-d3fecee65871" alt=""><figcaption><p>D-Link DWM-311-G</p></figcaption></figure>

### Prerequisites

* Monogoto SIM
* D-Link DWM-311-G 5G M2M modem
* Access to a private network

## Connect the D-Link DWM-311-G

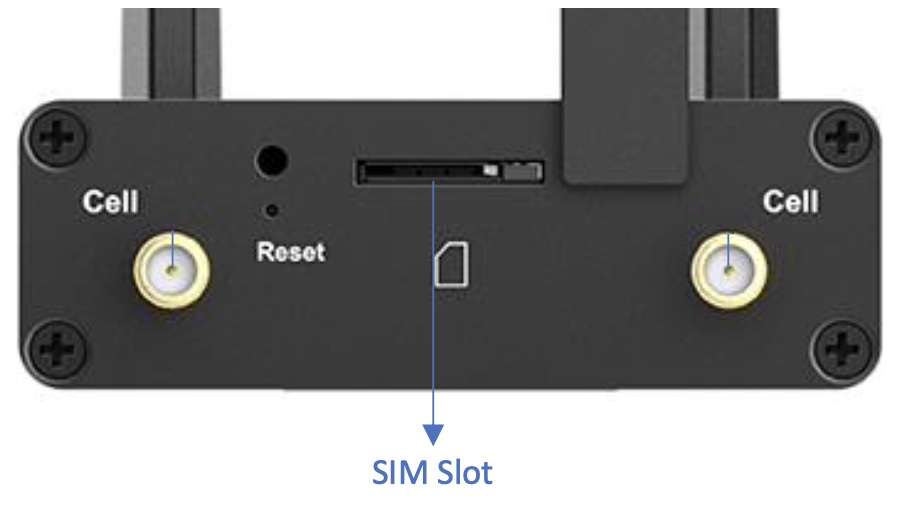

Start by inserting the Monogoto SIM into the D-Link DWM-311-G.

<figure><img src="https://3922449203-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-M0mPxGpottOEfcucXOR%2Fuploads%2FvWUY3aHZTAS0wLYFc4B0%2FDWM-311-G_slot.jpg?alt=media&#x26;token=85539be4-d36e-45ff-bac7-367c6dbe5f63" alt=""><figcaption></figcaption></figure>

Connect the D-Link DWM-311-G to your PC using the Ethernet cable.

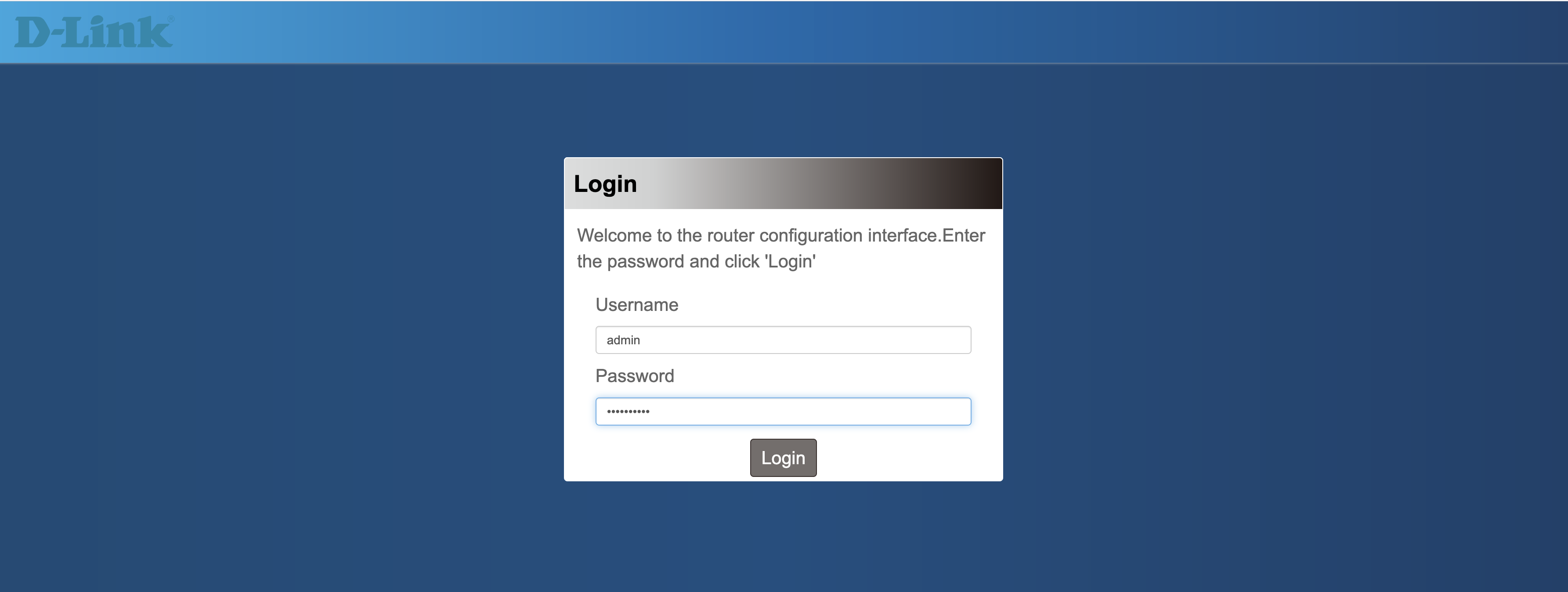

Open up a browser and visit the URL: **192.168.0.1.**

<figure><img src="https://3922449203-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-M0mPxGpottOEfcucXOR%2Fuploads%2F3ICTBGJQNEhetQv01gZ6%2FDWM-311-G_Login.png?alt=media&#x26;token=6d83dd1e-e565-4390-afd4-bb6e3d74429b" alt=""><figcaption></figcaption></figure>

Enter the password and click Login. \
The **password** is printed on a sticker located on the back of the device

{% hint style="warning" %}
Make sure to change the password after your first login.
{% endhint %}

## APN Configuration

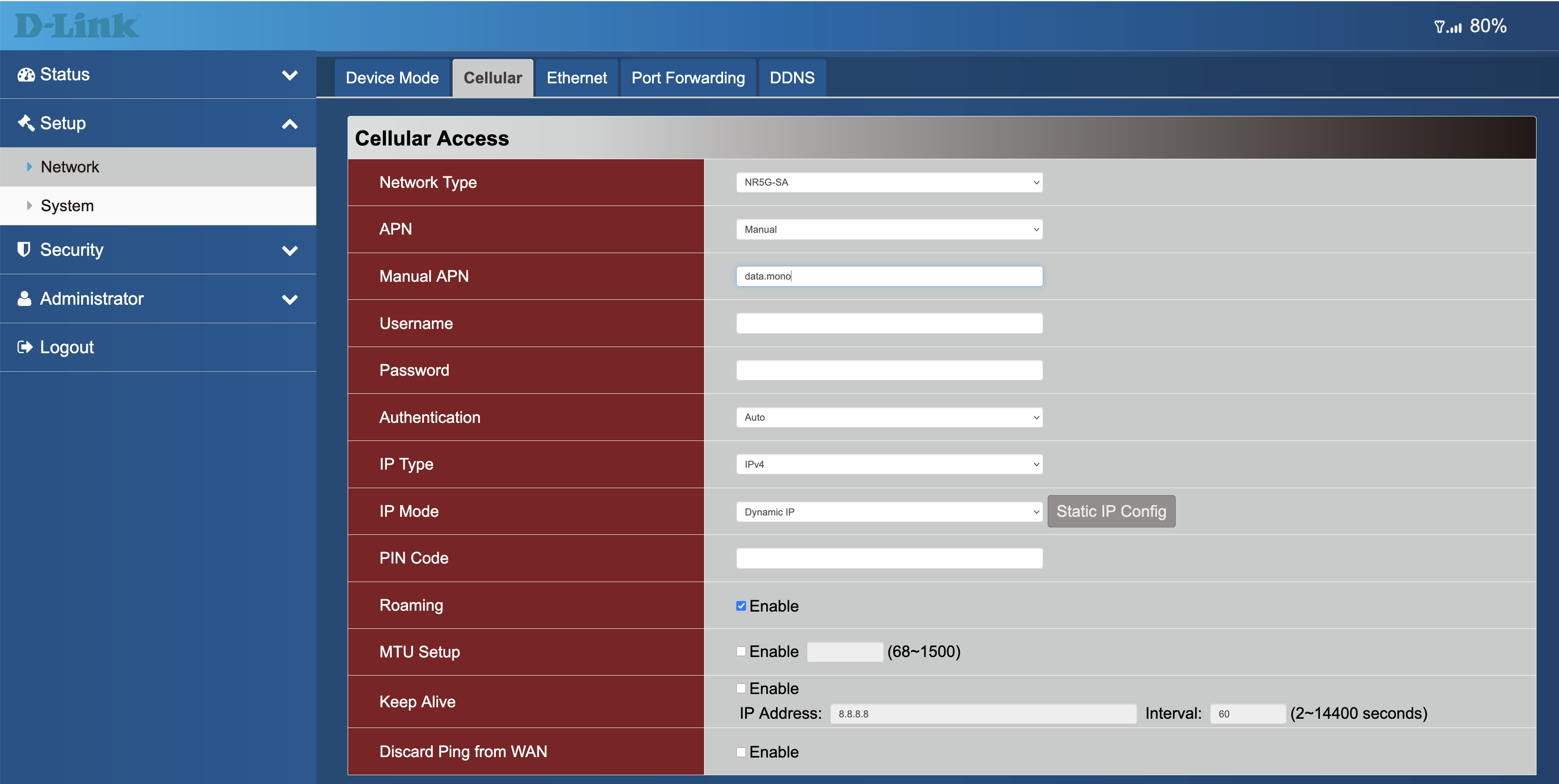

Open up the page **Setup > Network > Cellular**.

Configure the Manual APN to: <mark style="color:red;">**`data.mono`**</mark>

<figure><img src="https://3922449203-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-M0mPxGpottOEfcucXOR%2Fuploads%2Fw4efW1RCNaIPIIaZzN0r%2FDWM-311-G_Apn.png?alt=media&#x26;token=a87371e8-fddc-4435-9670-965ceb4a4b9e" alt=""><figcaption></figcaption></figure>

## Review the connection status

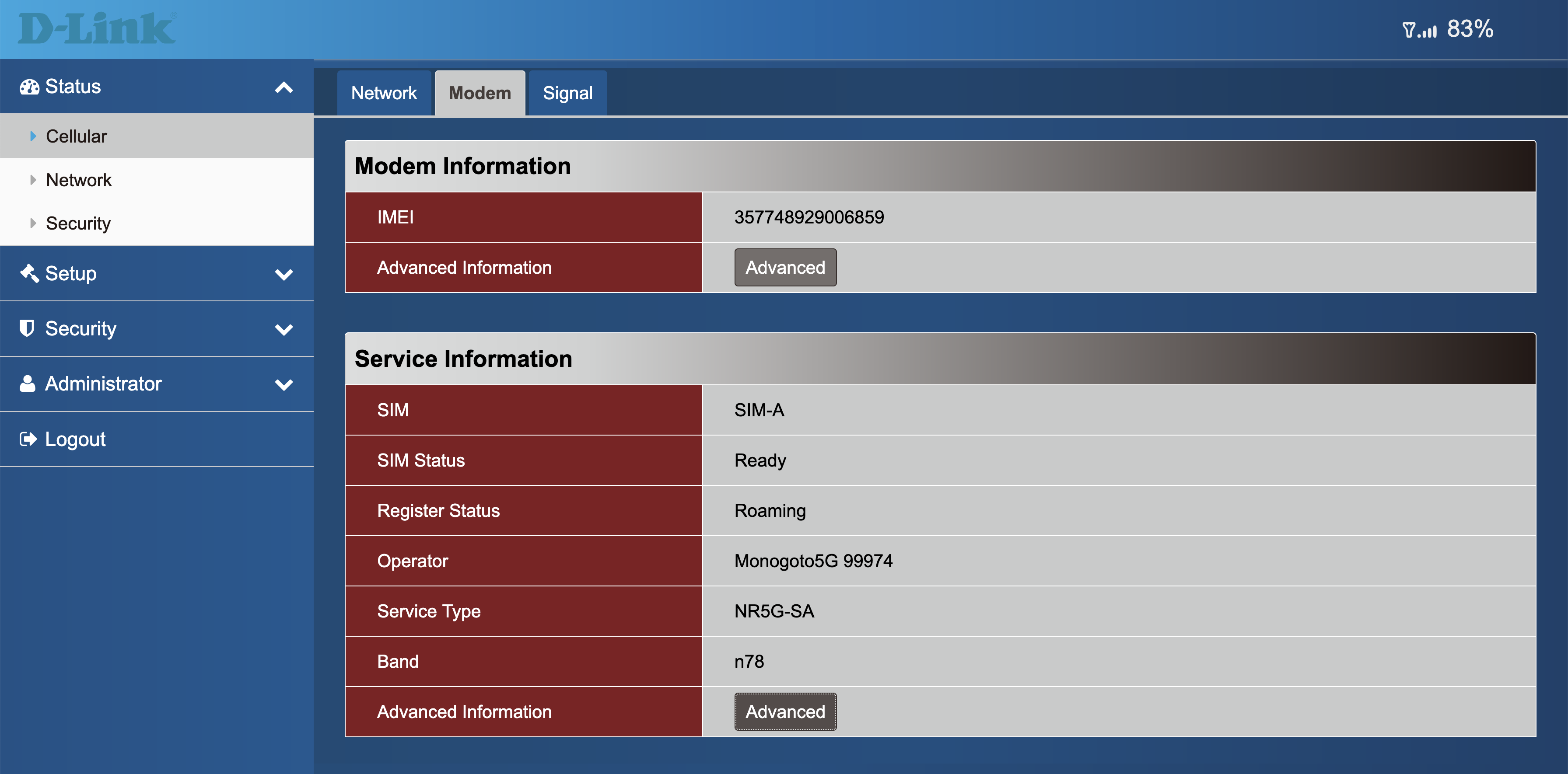

**Visit** the **Status > Cellular > Modem** page to verify the connection to Monogoto’s private network.\
If the connection is successfully established, the **Service Type** will display: `NR5G-SA`,\
and the **Operator** will show: `Monogoto5G 99974`.

<figure><img src="https://3922449203-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-M0mPxGpottOEfcucXOR%2Fuploads%2Fi0OtwvjxWGC8nU7tn12f%2FDWM-311-G_Status.png?alt=media&#x26;token=85911255-5d29-493b-b371-4df37d322c29" alt=""><figcaption></figcaption></figure>
