# D-Link DWP-1010W CPE

The D-Link DWP-1010W is a rugged 5G NR Outdoor CPE designed for FWA, industrial, and enterprise use. It offers high-speed 5G/LTE connectivity (up to 7 Gbps), supports public and private networks, and features IP67-rated housing, Wi-Fi 6, and PoE.\
Ideal for reliable, outdoor broadband deployment.

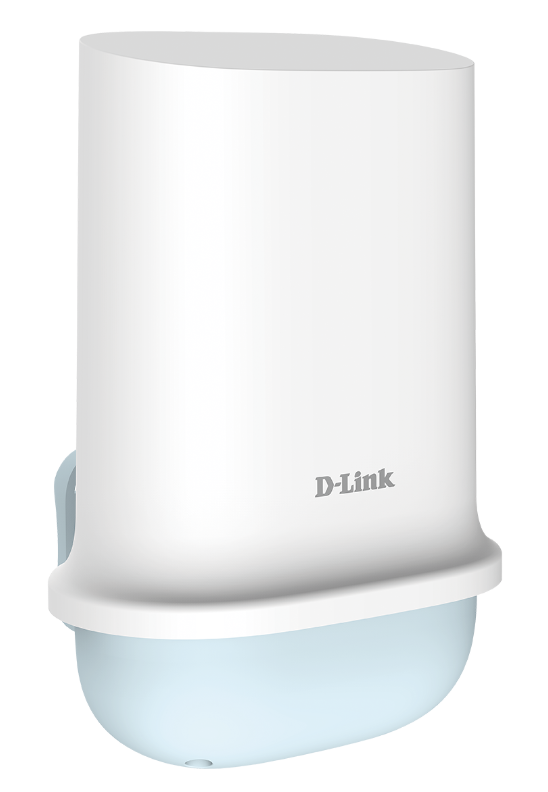

<figure><img src="https://3922449203-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-M0mPxGpottOEfcucXOR%2Fuploads%2FWCnOoshlePRke36O8Zk4%2FDWP-1010.png?alt=media&#x26;token=727e02c9-e2dc-481e-84b4-b18a124547d7" alt="" width="411"><figcaption><p>D-Link DWP-1010W</p></figcaption></figure>

### Prerequisites

* Monogoto SIM
* D-Link DWP-1010W CPE
* Access to a private network

## Connect the D-Link DWP-1010W CPE

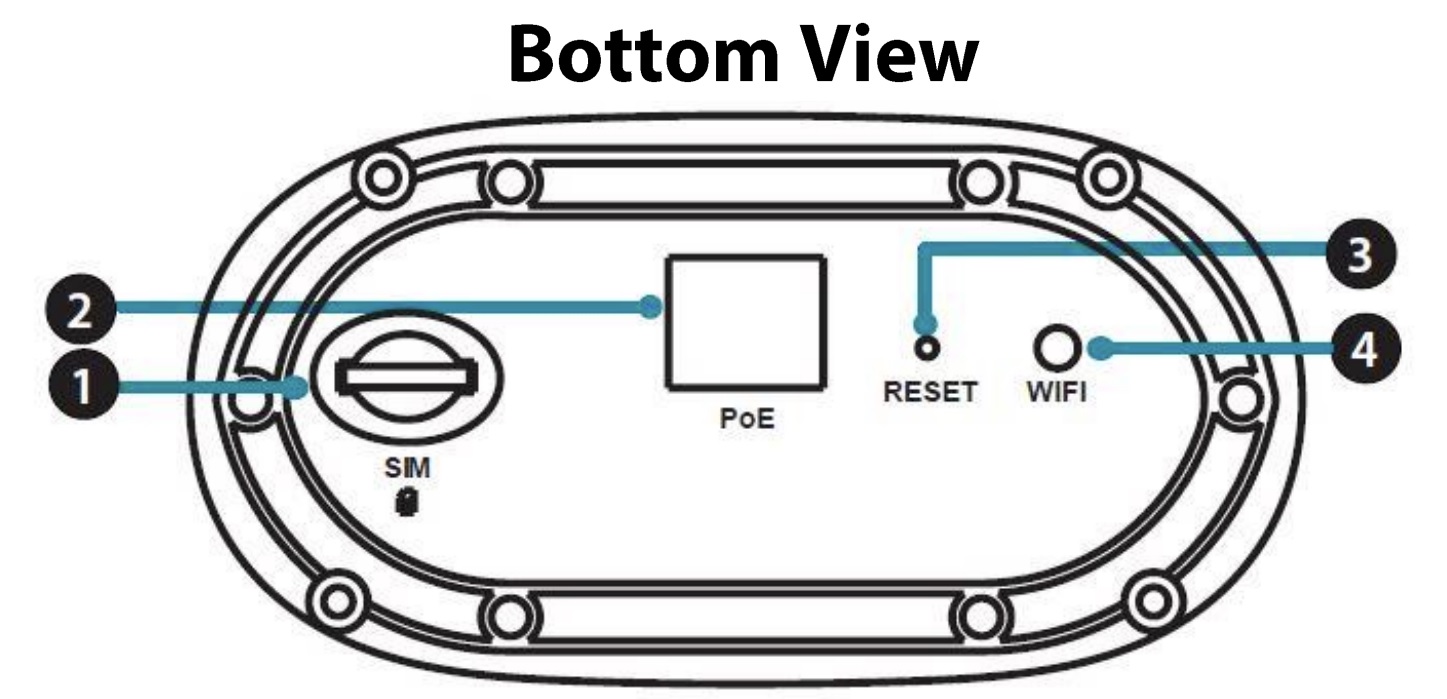

Start by inserting the Monogoto SIM into the D-Link DWP-1010W CPE.

<figure><img src="https://3922449203-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-M0mPxGpottOEfcucXOR%2Fuploads%2FNkgOlqx59vkPIc55bTDI%2FDWP-1010_slot.jpg?alt=media&#x26;token=3d8c4368-a279-439a-b6bb-4e344b61ade1" alt=""><figcaption></figcaption></figure>

Connect the D-Link DWP-1010W CPE to your PC using a POE adapter.

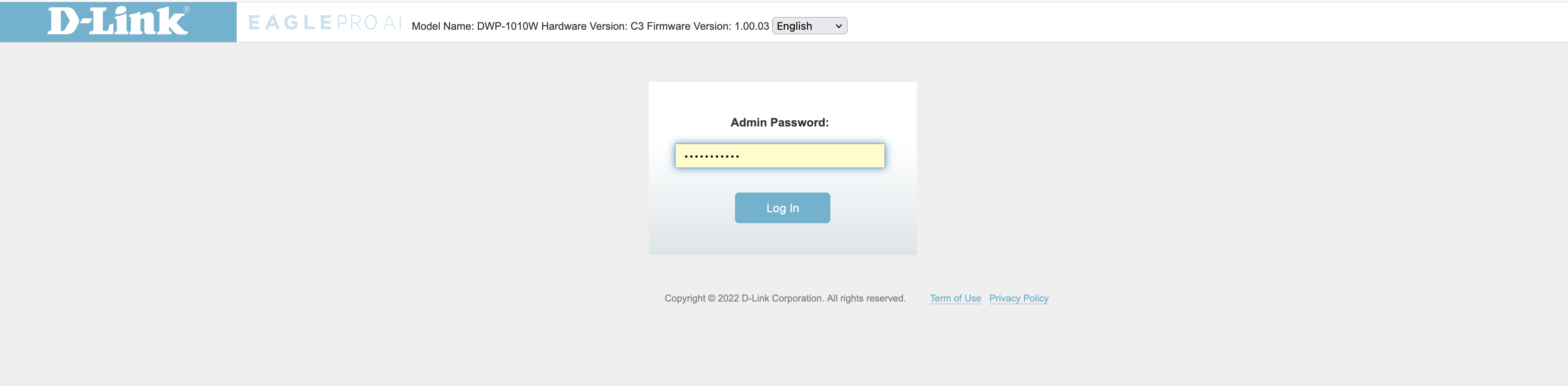

Open up a browser and visit the URL: **192.168.100.1.**

<figure><img src="https://3922449203-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-M0mPxGpottOEfcucXOR%2Fuploads%2Ftg5Dv4polOSjBixjyZJk%2FDWP-1010_Login.png?alt=media&#x26;token=e8d5bfd7-a012-4dbb-8a1b-de59254dc477" alt=""><figcaption></figcaption></figure>

Enter the password and click Login. \
The **password** is printed on a sticker located on the back of the device

{% hint style="warning" %}
Make sure to change the password after your first login.
{% endhint %}

## APN Configuration

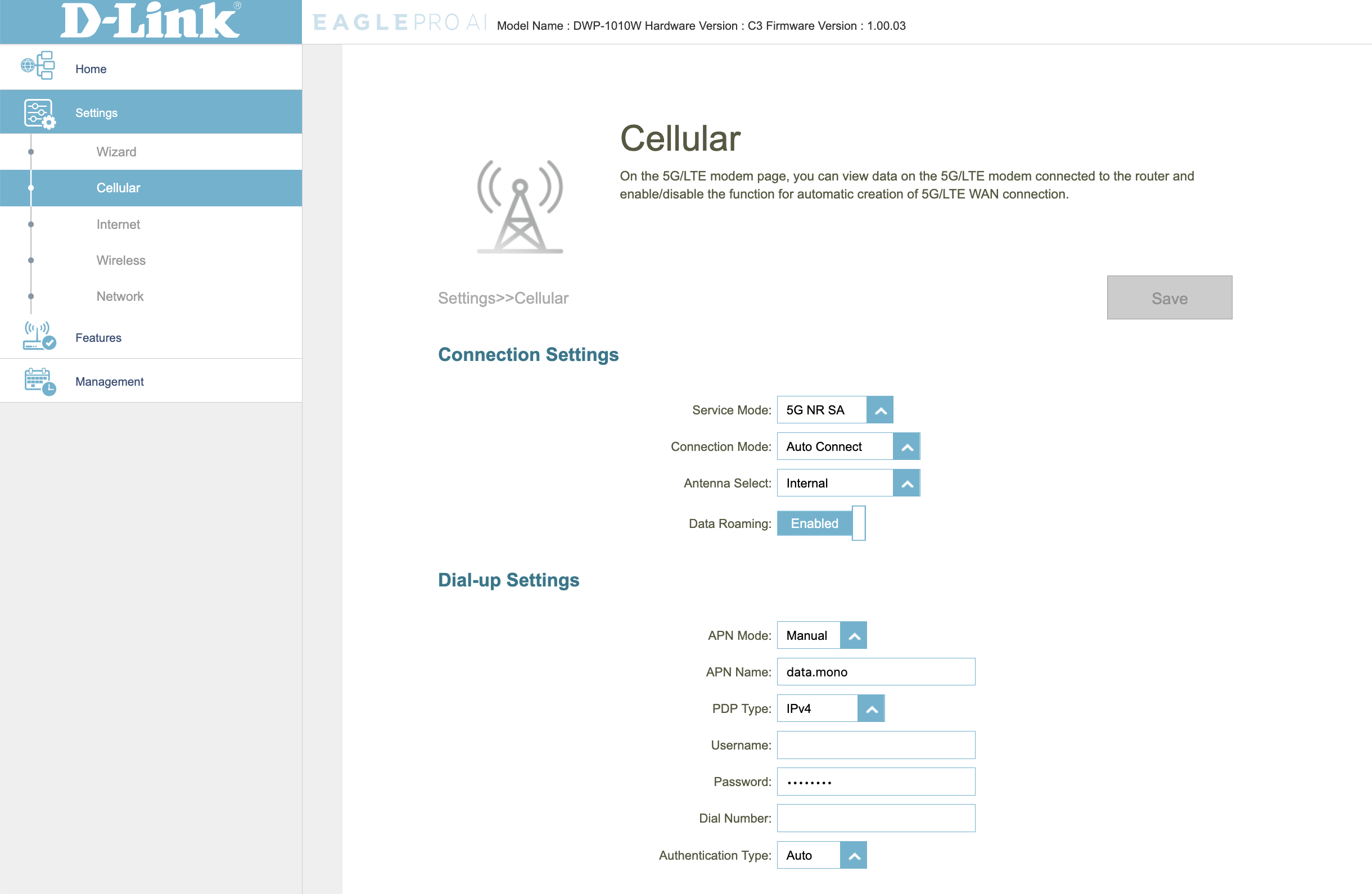

Open up the page **Settings > Cellular**.

Configure the Manual APN to: <mark style="color:red;">**`data.mono`**</mark>

<figure><img src="https://3922449203-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-M0mPxGpottOEfcucXOR%2Fuploads%2FIde1BsX8vut5wvlQLaoG%2FDWP-1010_Apn.png?alt=media&#x26;token=ea18bdc2-0d12-498f-9294-60c2290c3d82" alt=""><figcaption></figcaption></figure>

## Review the connection status

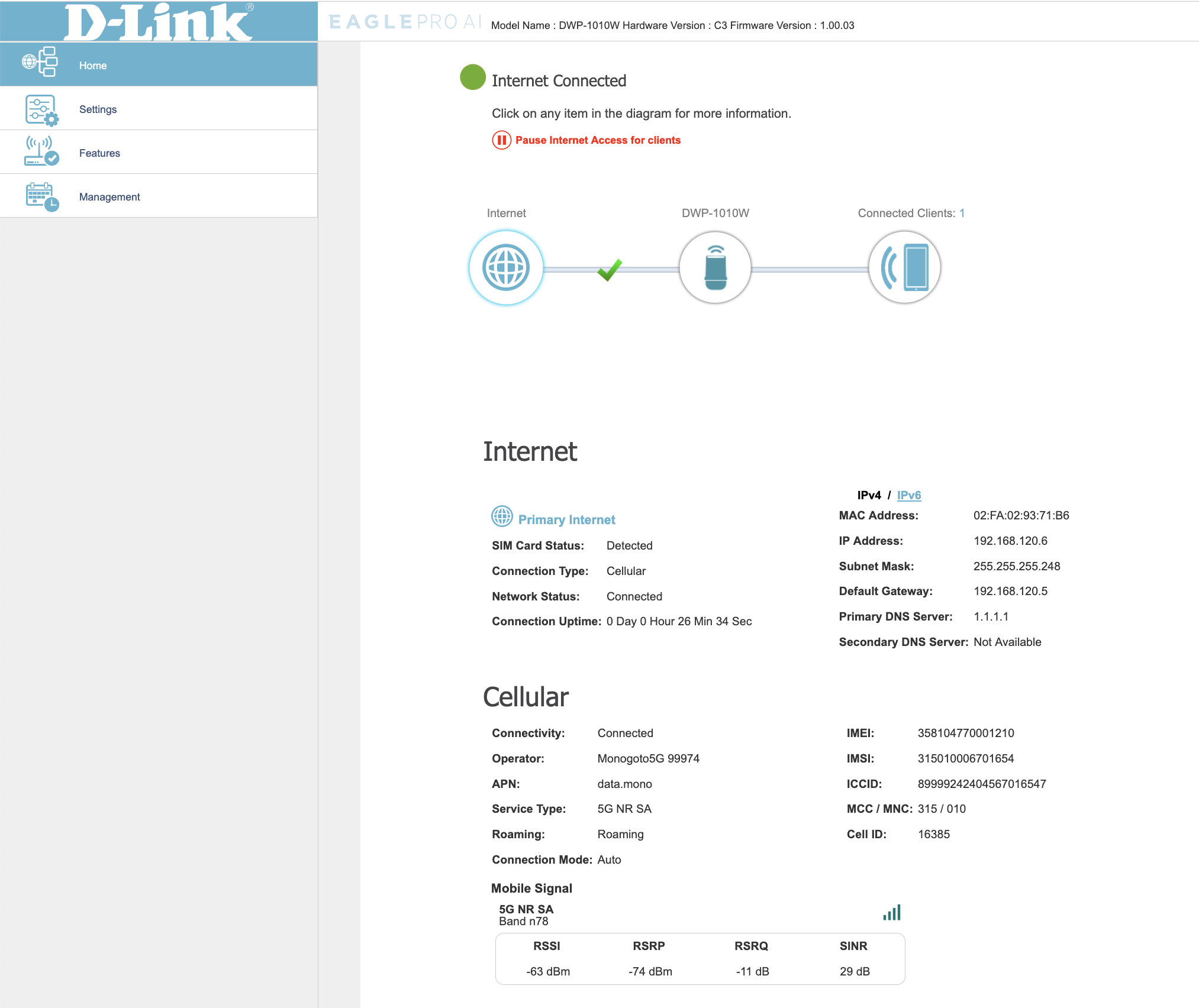

Visit the **Home** page to verify the connection to Monogoto's private network.\
If the connection is successfully established, the Cellular Connectivity Status will display: Connected, and the Operator will show: **Monogoto5G 99974**.

<figure><img src="https://3922449203-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-M0mPxGpottOEfcucXOR%2Fuploads%2FaC4GsB2Vl46IZmx7iP76%2FDWP-1010_Status.png?alt=media&#x26;token=02f864d2-8206-459f-a18e-ac3630e0c4be" alt=""><figcaption></figcaption></figure>
