# Peplink MAX BR1 Mini 5G

The Peplink MAX BR1 Mini 5G Router is an LTE device that provides access to (private) LTE networks. It allows users to access the shared spectrum of the CBRS using LTE technology.

The Peplink MAX BR1 Mini 5G  supports high performance on 4**G/5G bands**.

<figure><img src="https://3922449203-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-M0mPxGpottOEfcucXOR%2Fuploads%2FU3w0GBXYk0aowiG7YrAX%2FPeplink%20MAX%20BR1%20Mini%205G.png?alt=media&#x26;token=412f187f-0462-41c5-9c58-777d79f60c3a" alt=""><figcaption><p>Peplink MAX BR1 Mini 5G</p></figcaption></figure>

### Prerequisites

* Monogoto SIM
* Peplink MAX BR1 Mini 5G
* Access to a private LTE network

## Connect the Peplink MAX BR1 Mini 5G&#x20;

Start by inserting the Monogoto SIM into the Peplink MAX BR1 Mini 5G.

<figure><img src="https://3922449203-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-M0mPxGpottOEfcucXOR%2Fuploads%2F98KMUHGwjdVwFr5wlM5y%2Fpeplink%20setup.jpg?alt=media&#x26;token=0fc71625-b4c8-4b33-9385-9d430da10f8b" alt=""><figcaption></figcaption></figure>

Connect the Peplink MAX BR1 Mini 5G to your PC using the LAN1 Eth port.

Open up a browser and visit the URL: **192.168.50.1**

<figure><img src="https://3922449203-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-M0mPxGpottOEfcucXOR%2Fuploads%2F2JfR07LxwEBu2MjCLESS%2FPeplink%20login.png?alt=media&#x26;token=a4bed2e9-fb7c-4cbf-8042-dd51e61de185" alt=""><figcaption></figcaption></figure>

Enter the user name and password and click Login. The default credentials are:\
Username: **admin** \
Password: **admin**

{% hint style="warning" %}
Make sure to change the password after your first login.
{% endhint %}

## APN Configuration

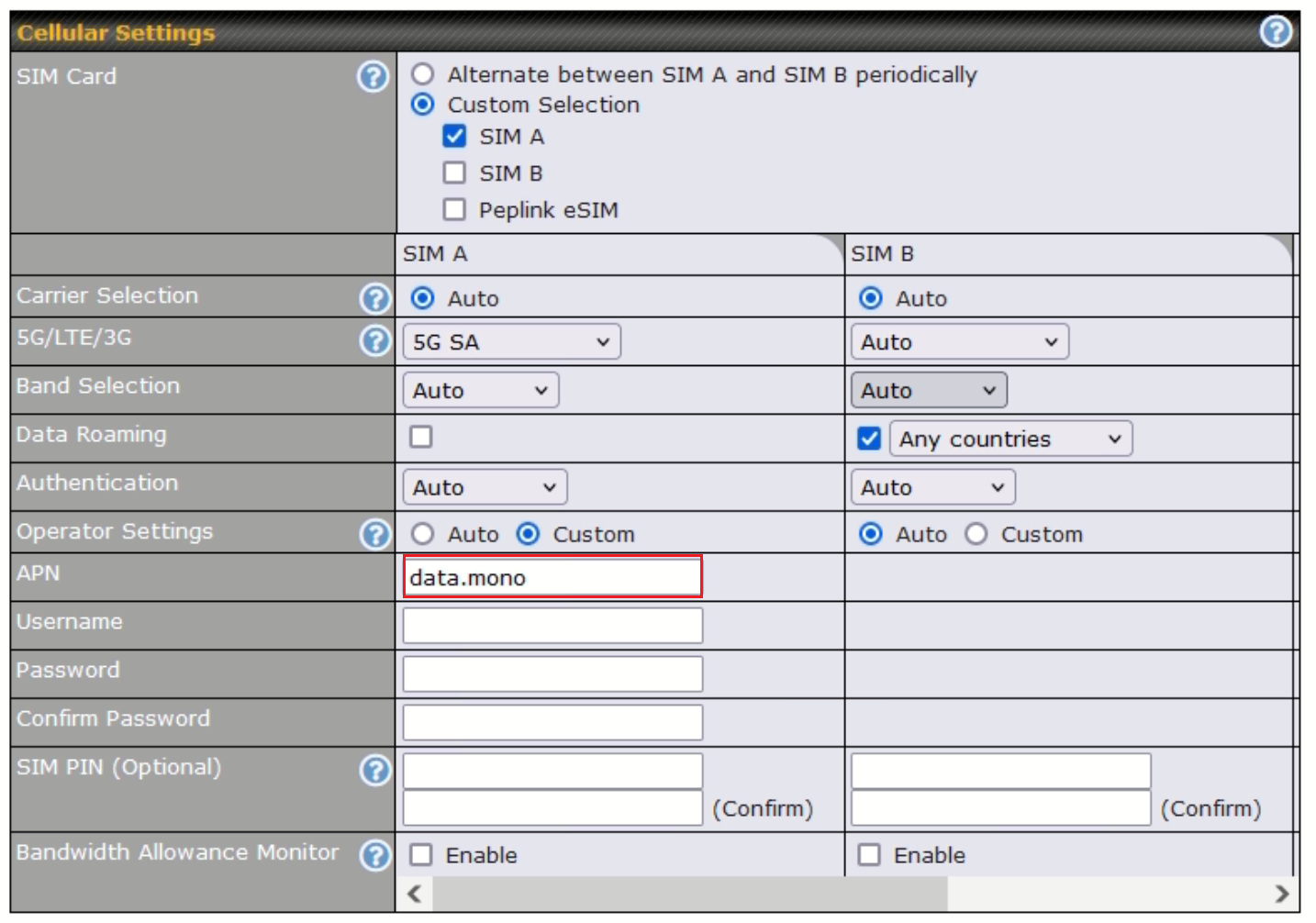

Open up the **Dashboard** page -> **Edit  Cellular** -> **Cellular Settings**

Configure the APN to: <mark style="color:red;">**`data.mono`**</mark>

<figure><img src="https://3922449203-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-M0mPxGpottOEfcucXOR%2Fuploads%2FaROufHYvrMdbE0KXqmy6%2FPeplink%20APN.png?alt=media&#x26;token=9ec29c51-22d8-43c5-bac7-5d979a0b28f9" alt=""><figcaption></figcaption></figure>

## Review the connection status

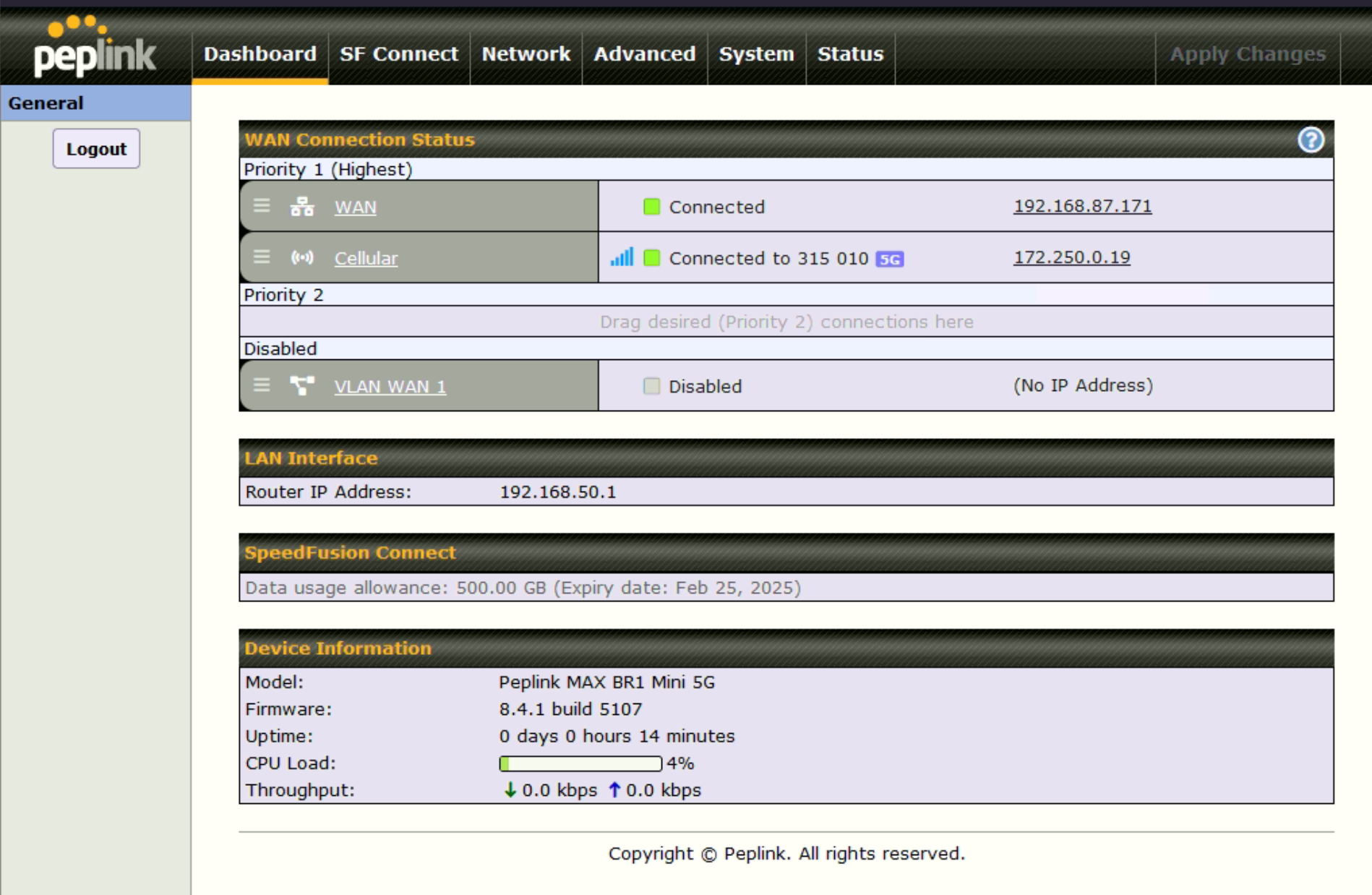

Open up the **Dashboard** page -> **Interface Status** -> **Cellular** validate the connection with Monogoto's private network. If the connection was successfully established, the Network Status reports: **Connected to 315010**&#x20;

<figure><img src="https://3922449203-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-M0mPxGpottOEfcucXOR%2Fuploads%2FeTgh10U0T994vce7kYYh%2Fpeplink%20status.png?alt=media&#x26;token=e5389316-9ab1-4bd0-b43f-23fa452cc782" alt=""><figcaption></figcaption></figure>
