# Telrad 9000 CPE

The Telrad 9000 outdoor CPE is an LTE device that provides access to (private) LTE networks. It allows users to access the shared spectrum of the CBRS using LTE technology.

The Telrad 9000 outdoor CPE supports **4G LTE bands** B42, B43, and B48.

<figure><img src="https://3922449203-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-M0mPxGpottOEfcucXOR%2Fuploads%2F76ubcwKyqva2FhQ4oos8%2FCPE_9000_Front.png?alt=media&#x26;token=000d5faf-ca90-43ad-bf5f-d0e91c098811" alt=""><figcaption><p>Telrad 9000 CPE</p></figcaption></figure>

### Prerequisites

* Monogoto SIM
* Telrad 9000 outdoor CPE
* Access to a private LTE network

## Connect the Telrad 9000 CPE&#x20;

Start by inserting the Monogoto SIM into the Telrad 9000 outdoor CPE.

<figure><img src="https://3922449203-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-M0mPxGpottOEfcucXOR%2Fuploads%2F3UxgONDvFCnEWHZrCCb0%2FCPE_9000_back.jpg?alt=media&#x26;token=c4f6be9d-7d20-4ed0-8a38-b678d1c30d92" alt=""><figcaption></figcaption></figure>

Connect the Telrad 9000 outdoor CPE to POE and your PC using the Eth port.

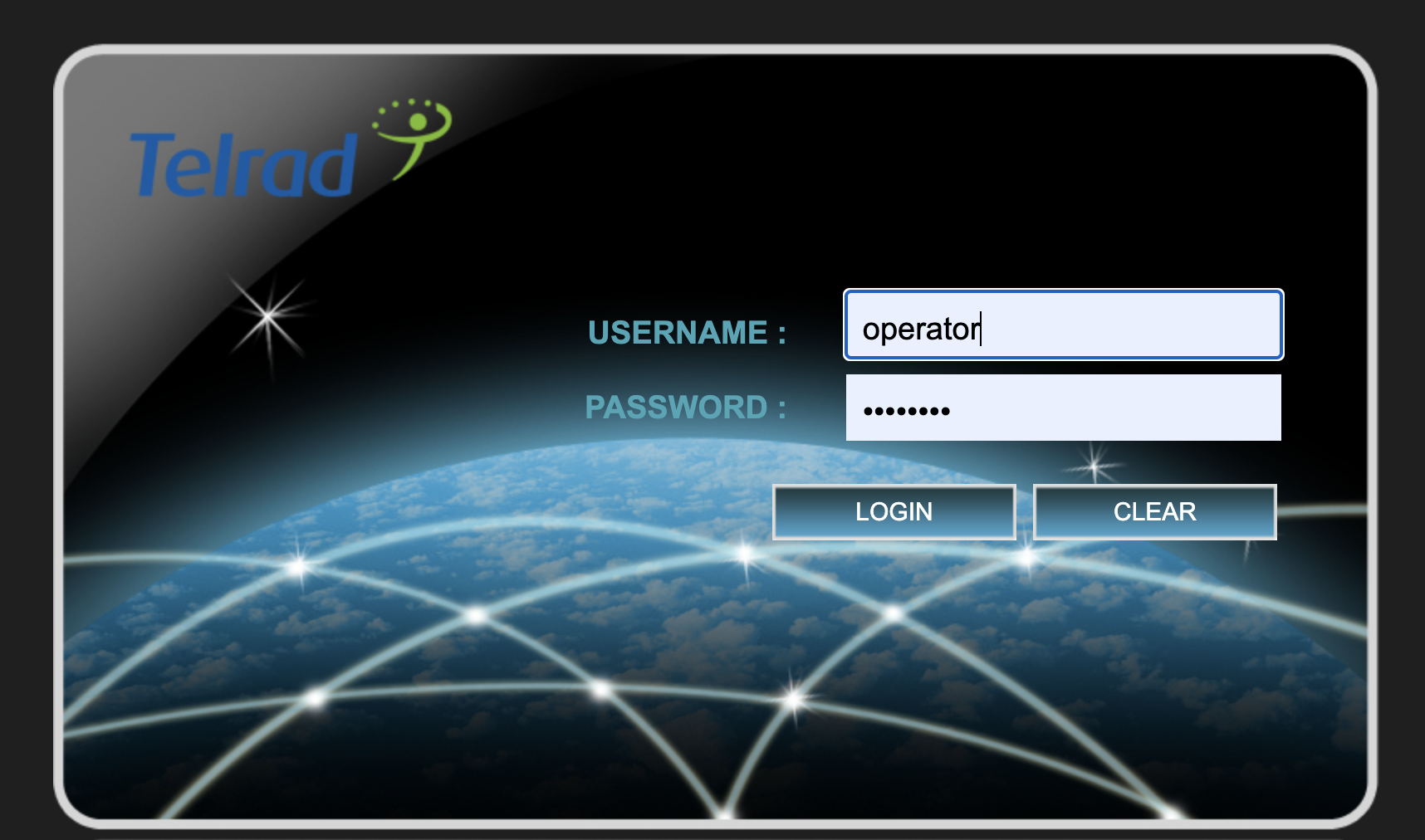

Open up a browser and visit the URL: **192.168.254.251**

<figure><img src="https://3922449203-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-M0mPxGpottOEfcucXOR%2Fuploads%2FIEL8SV7Lk1s5QXH8pvYF%2FCPE_9000_Login.png?alt=media&#x26;token=0ae47815-153c-495c-a93b-22b78ac260b2" alt=""><figcaption></figcaption></figure>

Enter the user name and password and click Login. The default credentials are:\
Username: **operator** \
Password: **Telrad4G**

{% hint style="warning" %}
Make sure to change the password after your first login.
{% endhint %}

## APN Configuration

Open up the page **LTE -> Default PDN**

Configure the APN Name to: <mark style="color:red;">**`data.mono`**</mark>

<figure><img src="https://3922449203-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-M0mPxGpottOEfcucXOR%2Fuploads%2FDtxO8qAX5GNvuK2wDyAc%2FCPE_9000_APN.png?alt=media&#x26;token=7212b7f6-92be-47fc-831c-3a27465d3c84" alt=""><figcaption></figcaption></figure>

## Review the connection status

Visit the **LTE -> Status** page to validate the connection with Monogoto's private network.&#x20;

<figure><img src="https://3922449203-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-M0mPxGpottOEfcucXOR%2Fuploads%2FRNug1rTyipcOHDESojzj%2FCPE_9000_Status.png?alt=media&#x26;token=382588e9-b65b-40c9-bed2-8aaf65f5df12" alt=""><figcaption></figcaption></figure>

## Useful Links

* [Telrad  9000 Specifications](https://files.gitbook.com/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-M0mPxGpottOEfcucXOR%2Fuploads%2FMdcDIAxrmMtoUYs65Hvg%2FDS_CPE9000-Outdoor-letter.pdf?alt=media\&token=978e6a59-f49f-4785-a43d-759e820d8753)
* [Telrad 9000 Quick Start Guide](https://files.gitbook.com/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-M0mPxGpottOEfcucXOR%2Fuploads%2FaMViOnMAoIpb9NGplFvy%2Fcpe9000.pdf?alt=media\&token=b7ca9f21-8338-473e-9aa5-1c77612f98c7)
