# Baicells EG7010C-M11 CPE

The Baicells EG7010C-M11 outdoor CPE is an LTE device that provides access to (private) LTE networks. It allows users to access the shared spectrum of the CBRS using LTE technology.

The Baicells EG7010C-M11 outdoor CPE supports **4G LTE bands** B42, B43, and B48.

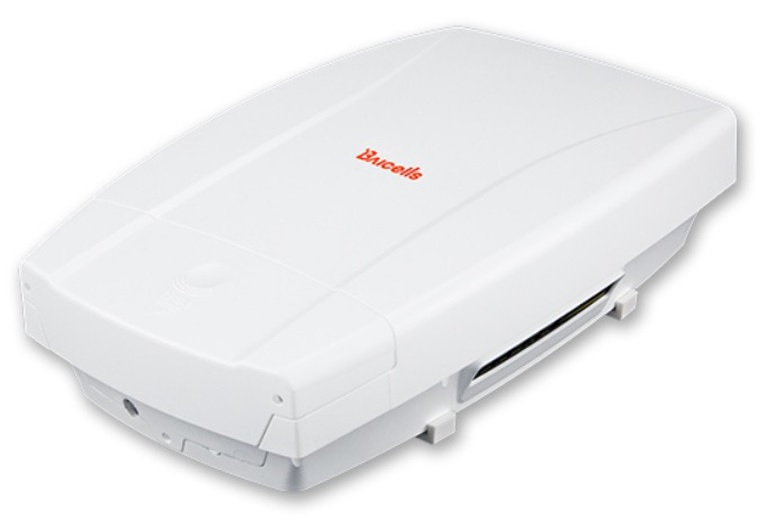

<figure><img src="https://3922449203-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-M0mPxGpottOEfcucXOR%2Fuploads%2FLnTMCXJokYfgImeoIxH4%2FBaicells-EG7010C-M11v2.jpg?alt=media&#x26;token=dced00c9-5be5-4276-97a3-e86b69cf0690" alt=""><figcaption><p>Baicells EG7010C-M11 </p></figcaption></figure>

### Prerequisites

* Monogoto SIM
* Baicells EG7010C-M11 outdoor CPE
* Access to a private LTE network

## Connect the Baicells EG7010C-M11 CPE&#x20;

Start by inserting the Monogoto SIM into the Baicells EG7010C-M11 outdoor CPE.

<figure><img src="https://3922449203-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-M0mPxGpottOEfcucXOR%2Fuploads%2FK265DSoTCFqrV7AXkzo8%2FBaicells_EG7010C_M11_Back.png?alt=media&#x26;token=31b456a6-1622-45f6-9502-1ddec85c9f41" alt=""><figcaption></figcaption></figure>

Connect the Baicells EG7010C-M11 outdoor CPE to POE and your PC using the Eth port.

Open up a browser and visit the URL: **192.168.150.1**

<figure><img src="https://3922449203-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-M0mPxGpottOEfcucXOR%2Fuploads%2FcmryhdpiAG2xhoag3Xha%2FBaicells_EG7010C_M11_Login.png?alt=media&#x26;token=8ce755b3-30c5-43d0-9c9e-4dff6ff0e672" alt=""><figcaption></figcaption></figure>

Enter the user name and password and click Login. The default credentials are:\
Username: **admin** \
Password: **admin**

{% hint style="warning" %}
Make sure to change the password after your first login.
{% endhint %}

## APN Configuration

Open up the page **LTE -> Edit APN Profile**

Configure the APN to: <mark style="color:red;">**`data.mono`**</mark>

<figure><img src="https://3922449203-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-M0mPxGpottOEfcucXOR%2Fuploads%2FU9pmp2wP6rFCzL2ao6UD%2FBaicells_EG7010C_M11_APN.png?alt=media&#x26;token=75b4bf18-ed69-4457-a80d-325bc47b19b4" alt=""><figcaption></figcaption></figure>

## Review the connection status

Visit the **Status -> Overview** page to validate the connection with Monogoto private network.&#x20;

<figure><img src="https://3922449203-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-M0mPxGpottOEfcucXOR%2Fuploads%2FToO9qEIbcy7CsmSvQyTh%2FBaicells_EG7010C_M11_Status.png?alt=media&#x26;token=e1892b08-8b21-4acb-84aa-66cc63f2d8bd" alt=""><figcaption></figcaption></figure>

## Useful Links Baicells EG7010C-M11

* [Baicells EG7010C-M11 Specifications](https://files.gitbook.com/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-M0mPxGpottOEfcucXOR%2Fuploads%2FNC5gLVr2is6yCWTduQF5%2FBaicells_EG7010C_M11_datasheet.pdf?alt=media\&token=6819ba4c-ee50-483c-a06a-a4e07678f343)
* [Baicells EG7010C-M11 Quick Start Guide](https://files.gitbook.com/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-M0mPxGpottOEfcucXOR%2Fuploads%2FrwrhQc7cln7HTjGT0WZi%2FBaicells_EG7010C_M11_Manual.pdf?alt=media\&token=d6fe29ce-8e62-4227-967a-f93e44790ab6)
